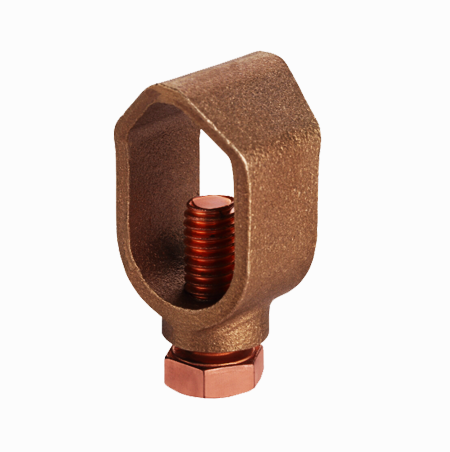

Earth Rod To Cable Clamp
Designed for copper bonded earthing rods, suitable for direct burial, high-strength bronze alloy, corrosion resistant, providing low resistance copper to copper connections. Clamps are fitted with non ferrous screws for longer life.
Technical Specification
| Part no. | Rod Diameter (mm) | Conductor Range (mm2) | Unit Weight (Kg) |
|---|---|---|---|
| SCCR 001 | 14.2 | 42522 | 0.05 |
| SCCR 002 | 14.2 | 16-70 | 0.065 |
| SCCR 003 | 14.2 | 16-95 | 0.065 |
| SCCR 004 | 17.2 | 16-95 | 0.1 |
| SCCR 005 | 17.2 | 70-185 | 0.2 |
