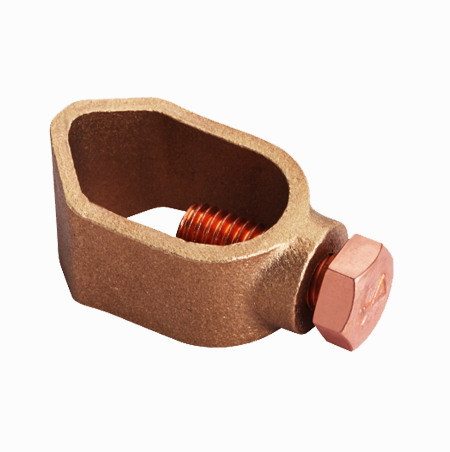

Earth Rod To Tape Clamps
Rod to Tape Clamp are corrosion resistive and has huge conductivity & mechanical strength which are essential considering clamp design. It is used to ensure that the Earthing system remain operative for many years
Technical Specification
| Part no. | Rod Diameter (mm) | Maximum Tape Size (mm) | Weight (Kg) |
|---|---|---|---|
| SCTR 001 | 14.2 | 26x12 | 0.14 |
| SCTR 002 | 14.2 | 31x12 | 0.17 |
| SCTR 003 | 14.2 | 40x6 | 0.2 |
| SCTR 004 | 14.2 | 50x6 | 0.21 |
| SCTR 005 | 16 | 26x12 | 0.14 |
| SCTR 006 | 16 | 31x12 | 0.17 |
| SCTR 007 | 16 | 51x12 | 0.21 |
| SCTR 008 | 17.2 | 26x12 | 0.14 |
| SCTR 009 | 17.2 | 31x12 | 0.17 |
| SCTR 010 | 17.2 | 40x6 | 0.2 |
| SCTR 011 | 17.2 | 51x12 | 0.21 |
| SCTR 012 | 20 | 26x6 | 0.14 |
